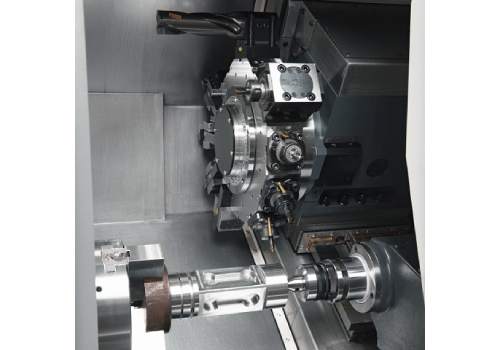

AS-200
Single Turret Machines
View Product Video
Broucher Catalog
Features
Y-axis, Milling Standard! Turning and Milling with full power!
- Space saving combined machine tool with Y-axis & Milling function.(standard)
- With Y-axis! Stroke: 82mm.
- With Milling function: 5.5/3.7kw, spindle speed: 6000min-1.
High speed index!
- X-axis: 24m/min, Z-axis:36m/min, C-axis: 600min-1.
- Turret: Max dodecagonal drum turret(Max.24station) or 15station.
- Number of milling tool (dodecagonal drum turret): 12.
- Number of milling tool (pentadecagonal drum turret): 15.
Specifications
| φ65mm | φ71mm | |
|---|---|---|
| Max. turning diameter | 290mm | |
| Max. turning diameter(op.15st) | 280mm | |
| Distance Between Centers(op.) | 427mm | |
| Bar capacity | 65mm | 71mm |
| Chuck size | 8″ | |
| Spindle speed | 4,500mm-13,000mm-1(op.) | |
| Spindle Drive motor | 15/11kW | |
