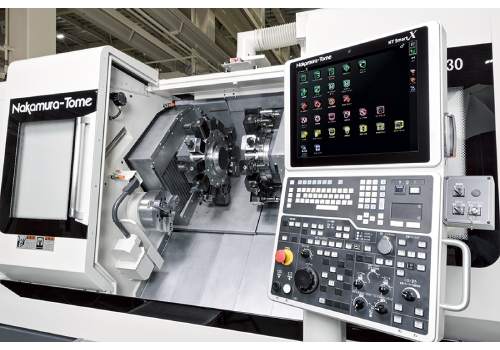

NEW TW-30

Multi Turret Machines

E

View Product Video

Broucher Catalog

Features

Best Suited For All Sorts of Heavy Duty Machining A Super Machine, Which Takes Pride for Its Rigidity and Bar Capacity
  • Two-turret, opposed twin-spindle machine.
  • High precision direct transfer operation on Right spindle by servo motor torque control technology.
  • Simultaneous cutting on L/R opposed twin-spindles ensures faster cycle times.
  • 24 tool stations. The number of tools can further increased by using multi-holders.
  • Non-lift servo-driven turret.
Contact us

Specifications

φ71
Max. turning diameter 335mm / 400mm(Large swing spec.)
Max. turning length 300mm
Distance between spindles max.1300mm/min.320mm
Bar capacity 71mm
Chuck size 10″
L/R Spindle speed 3,500min-1
Left Spindle drive motor 22/18.5kW
Right Spindle drive motor 22/18.5KW
