NTY3-250
Swing B-axis Turret Machines
View Product Video
Broucher Catalog
Features

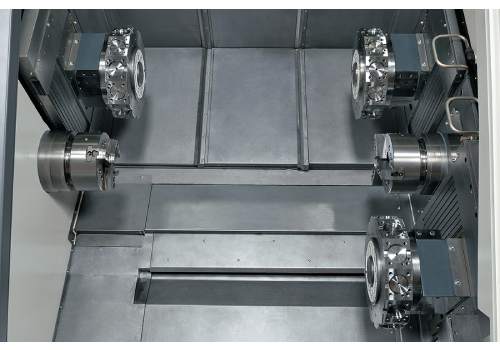

Three-Turret, Three-Y-Axis, Opposed-Spindle CNC Multitasking Machine.
- All three Y-axes are standard.
- Up to 72 tools.
- Milling motors have 5.5/3.7kW power and 6,000 min-1 max. speed.
- Spindle motor 18.5/11kW(op. L:26/22Kw).
- Simultaneous cutting with upper and lower tools on L/R opposed-spindles ensures balanced processes and faster cycle times.
Specifications
| φ51mm(Only R) | φ65(op.R） | φ71mm(op.) | φ80mm(op.) | |
|---|---|---|---|---|
| Max. turning diameter | 225mm | 191mm | ||
| Max. turning length | Upper turret: 310.5mm/Lower Turret: 905.5mm | |||
| Distance between spindles | max.1,200mm/min.255mm | |||
| L Bar capacity | – | 65mm | 71mm(op.) | 80mm(Op.) |
| R Bar capacity | 51mm | 65mm(op.) | 71mm(op.) | – |
| L Chuck size | – | 8″ | ||
| R Chuck size | 6″ | – | ||
| Left Spindle speed | – | 5,000min-1,4,000min-1(op.High Torque specification.) | 3,500min-1 | |
| Right Spindle speed | 5,000min-1,4,000min-1(op.High torque specifications.) | – | ||
| Left Spindle drive motor | – | 18.5/11kW, 26/22kW (op.) | ||
| Right Spindle drive motor | 18.5/11KW | – | ||
※1.Direct connecting pipe
※2.Joint connection
