SC-450L
Multi Turret Machines
View Product Video
Broucher Catalog
Features
Max Turning Length 1,520m, Max swing Over Bed φ810mm
- Milling motor power 5.5/3.7kW and max. speed 3,600min-1 (op.).
- Heavy duty spindle motor with 30/22kW.
- Y-axis travel ±75mm (op.).

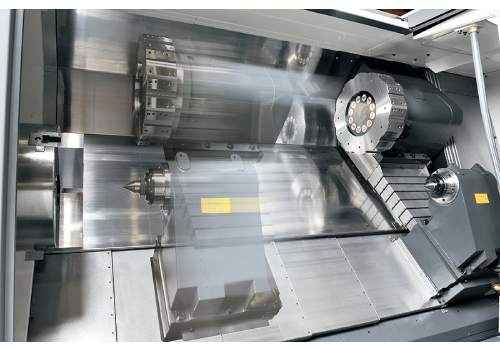

Massive Box-Way Slides on All Axes
- 12-station dodecagon drum turret.
- NC Tailstock setup can be easily done on NT Nurse setting screen.
- Easy operation with movable operation control panel.
- LCD monitor and LED illuminated switches.
Specifications
| φ81mm | φ89mm(op.) | |
|---|---|---|
| Max. Turning Diameter | 480mm | |
| Max. Turning Length | 1,520mm | |
| Distance Between Centers(op.) | 1,752mm | |
| Bar Capacity | 81mm | 89mm |
| Chuck Size | 12″ | |
| Spindle Speed | 2,500min-1 | |
| Spindle Drive Motor | 30/22kW | |
| Milling Spindle Speed(op.) | 3,600min-1 | |
| Milling Drive Motor(op.) | 5.5/3.7kW | |
