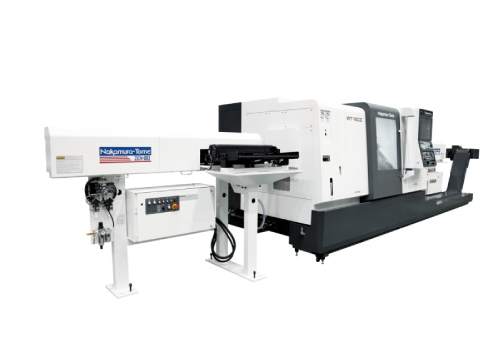

Shafts Loader “Zen-Bei”
View Product Video
Broucher Catalog
Features
Fully automatic loading and unloading of shafts.
- By combining “Zen-Bei” and “Hai-Bei”, fully automatic loading and unloading of shaft work is made possible.
- Our original automation devices contribute to the improvement of our customers productivity.
Specifications
Work DiameterΦ10～34mmΦ15～42mm
| SL-08W-800 | SL-10W-1000 | SL-3NTY-1000 | |
|---|---|---|---|
| Compatible machines | TW-8 | WT-100 | WY-100II NTY3-100 |
| Work Length(A size) | 100～500mm | 100～400mm | |
| Work Length(B size) | 500～800mm | 400～700mm | |
| Work Length(C size) | – | 700～1,000mm | |
| Push rod diameter | Φ15mm | ||
| Number of Raw Parts | 23(※for Φ20mm work size) | ||
| SL-15WT-800 | SL-25WT-1000 | |
|---|---|---|
| Compatible machines | WT-150II | WT-250II |
| Work Diameter | Φ15～51mm | |
| Work Length(A size) | 100～400mm | |
| Work Length(B size) | 400～700mm | |
| Work Length(A size) | 700～1,000mm | |
| Push rod diameter | Φ15mm | |
| Number of Raw Parts | 23(※for Φ20mm work size) | |
*Pipe materials, perforated materials, deformed materials, etc. may require custom made. Please contact us for your specific requirements.
