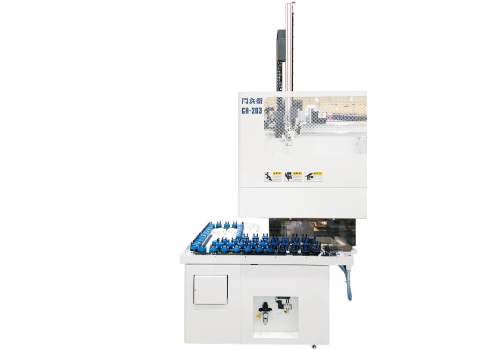

Single-Layer Work Stocker
View Product Video
Broucher Catalog
Features
Work stocker for unmanned automation
- Work stocker can be chosen according to the machined parts.
- A quality control chute is available to control parts during automatic cycle.
Specifications
Compatible models：【GR-203 High-Speed】【GR-203II】【GR-201】【GR-103】
| WS-121 | WS-122 | WS-124 | |
|---|---|---|---|
| Type | Single-Layer Pallet | ||
| Part Diameter | Φ20~80mm | ||
| Number of Pallets | 30 Pallets | 60 Pallets | 120 Pallets |
| Max. Loading Weight | 2kg/Pallet | ||
Compatible models：【GR-203 High-Speed】【GR-203II】【GR-201】【GR-103】
| WS-132 | |
|---|---|
| Type | Single-Layer Pallet |
| Part Diameter | Φ20~150mm |
| Number of Pallets | 20 Pallets |
| Max. Loading Weight | 18kg/Pallet |
