Super NTJ
Swing B-axis Turret Machines
View Product Video
Broucher Catalog
Features

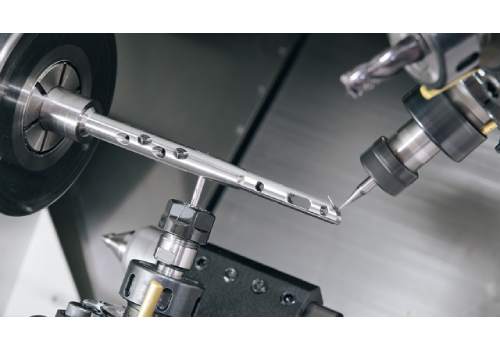

B-axis Turret swiveling range is 182°In addition to angular drilling and end milling, arbitrary contour-milling can be performed with standard driven-tool holders

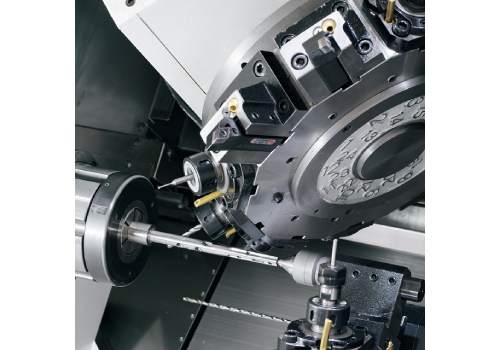

- Upper turret with a B-axis, having a swiveling range of 182°
- Up to 48 tools.
- Simultaneous cutting with upper and lower tools on L/R opposed-spindles ensures balanced processes and faster cycle times
Upper turret has milling and Y-axes.
- Upper Y-axis travel is 90 mm.
- Milling motors have 5.5/3.7kW power and 6,000min-1 max. speed.
Specifications
| φ65mm | φ51mm（op.） | φ34mm（op.） | |
|---|---|---|---|
| Max. turning diameter | 190mm | ||
| Max. turning length | 620mm | ||
| Distance between spindles | max.970mm/min.210mm | ||
| L Bar capacity | 65mm | 51mm(op.) | 34mm (op.) |
| R Bar capacity | – | 51mm | 34mm (op.) |
| Chuck size | 6″ | 5″ | |
| Spindle speed | 4,500min-1 | 5,000min-1 | 8,000min-1 |
| Left Spindle motor | 15/11kW | ||
| Left Spindle motor | 11/7.5KW | ||
