WT-150II
Multi Turret Machines
View Product Video
Broucher Catalog
Features

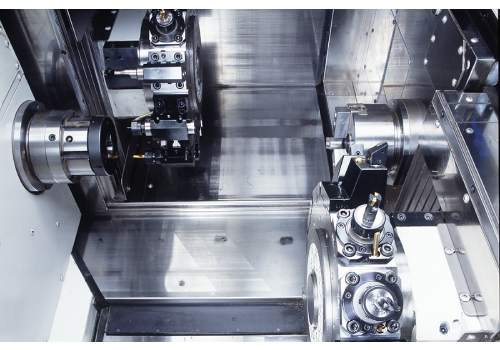

High-Speed, High-Rigidity, Compact Multitasking Machine
- NT smartX.
- Left spindle motor power 15/11kW, Right spindle motor power 11/7.5 kW.
Up to 26 kW cutting power available for turning shaft-work with synchronized spindles. - 5.5/3.7kW milling motor x2 , High-Performance machining with small tools.
- Simultaneous cutting with upper and lower tools on L/R opposed-spindles ensures balanced processes and faster cycle times.
- Up to 48 tools. Multi-tool holders and mid-position indexing of turrets greatly increase the number of tools.
Specifications
| φ51mm | φ65mm（op.） | |
|---|---|---|
| Max. turning diameter | 190mm | |
| Max. turning length | 515mm | |
| Distance between spindles | max.800mm/min.200mm | |
| Bar capacity | 51mm | 65mm (only L) |
| Chuck size | 6″ | |
| L/R Spindle speed | 5,000min-1 | 4,500min-1 |
| Left Spindle drive motor | 15/11kW | |
| Right Spindle drive motor | 11/7.5KW | – |
