WT-250II
Multi Turret Machines
View Product Video
Broucher Catalog
Features
Multitasking Machine for Diversified Variable Lot-Size Production. Multipurpose Machine
- Left spindle motor power 18.5/15kW, Right spindle motor power 11/7.5 kw.

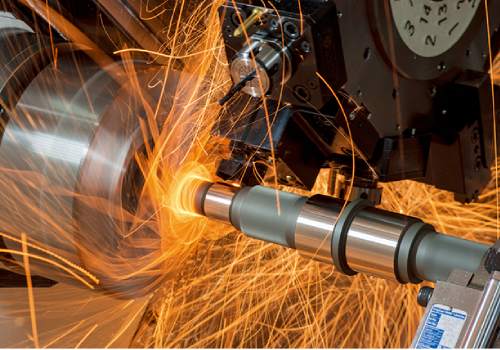

Up to 29.5kW cutting power available for turning shaft-work with synchronized spindles. - Milling Tool Motor Power 5.5/3.7kW, High-Performance machining with small tools.

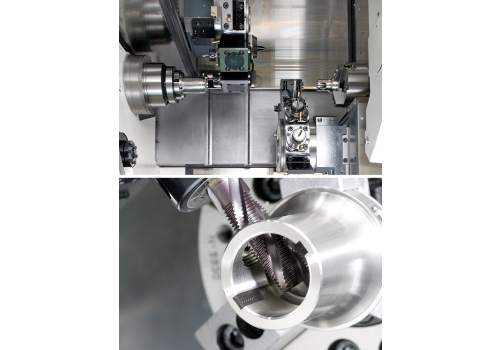

- With upper and lower turret construction, simultaneous balance cutting and other combinations available on either L or R spindles.
Simultaneous cutting with upper and lower tools on L/R opposed-spindles ensures balanced processes and faster cycle times
- Up to 48 tools. Multi-tool holders and mid-position indexing of turrets greatly increase the number of tools
Specifications
| φ51mm | φ65mm | |
|---|---|---|
| Max. turning diameter | 250mm | |
| Max. turning length | 555mm | |
| Distance between spindles | max.885mm/min.265mm(L:Φ65/R:Φ51) max.870mm/min.250mm(L:Φ65/R:Φ65) |
|
| L Bar capacity | – | 65mm |
| R Bar capacity | 51mm | 65mm (op.) |
| Chuck size | 8″/6″ | |
| L Spindle speed | – | 4,500min-1 |
| L Spindle drive motor | – | 18.5/15kW 35/26/22kW(op.) Wide range 15/11kW(op.) |
| R Spindle speed | 5,000min-1 | 4,500min-1(op.) |
| R Spindle drive motor | 11/7.5kW, 15/11kW(op.), 18.5/15kW(op.) | |
