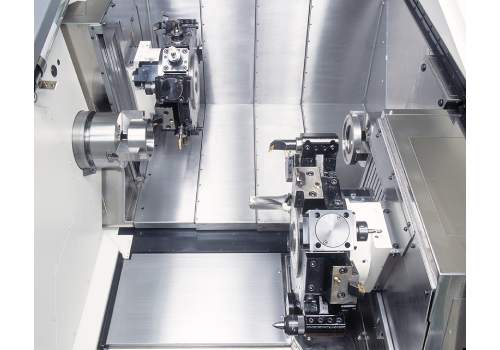

WT-300
Multi Turret Machines
View Product Video
Broucher Catalog
Features
The World’s Shortest Tool-Spindle “NT Smart Cube” High Rigidity Multitasking Machine with ATC
- NT smartX.
- Left / Right spindle motor power 15/11kW.
Up to 30kW cutting power available for turning shaft-work with synchronized spindles. - Milling Tool Motor Power 5.5/3.7kW, High-Performance machining with small tools.
- Simultaneous cutting with upper and lower tools on L/R opposed-spindles ensures balanced processes and faster cycle times.
- Up to 48 tools. Multi-tool holders and mid-position indexing of turrets greatly increase the number of tools.
Specifications
| φ65mm | φ71mm | φ80mm（op.） | φ102mm（op.） | |
|---|---|---|---|---|
| Max. turning diameter(Upper) | 270mm | 199mm | ||
| Max. turning diameter(Lower) | 270mm | 270mm(L:φ102/R:Φ65) 229mm(L:φ102/R:Φ102) |
||
| Max. turning length | 780mm | |||
| Distance between spindles | max.1,100mm/min.250mm | |||
| L Bar capacity | φ65mm | φ71mm | φ80mm | φ102mm |
| R Bar capacity | φ65mm | – | – | φ102mm |
| L Chuck size | 8″ | 12″ | ||
| L Spindle speed | 4,500min-1 | 4,000min-1 | 3,500min-1 | 2,500min-1 |
| L Spindle drive motor | 15/11kW, 18.5/15kW(op.), 22/18.5kW(op.) | |||
| Right Spindle speed | 4,500min-1 | – | – | 2,500min-1 |
| R Spindle drive motor | 15/11kW, 18.5/15kW(op.) | – | – | 15/11kW, 18.5/15kW(op.) |
