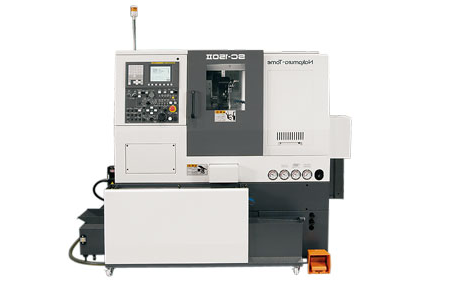

All axes are equipped with high-rigidity and high-resistance box-side slides
Massive box-way slides on all axes
11/7.5kW spindle motor
Spindle speed 6000min-1,Driven-tool speed 4000min-1
Faster rapid traverse 24m/min for the X-axis,and 36m/min for the Z-axis
Bar capacity 42mm standard, 51mm option.
All FANUC, CNC control and servo drives.
Dodecagonal 12 station turret
Space saving is 11% compared to the TMC-15
High quality painting,as well as stainless covers.
Machine Specification
| Capacity |
| Max. turning diameter/Max. turning length |
220mm/290mm |
| Distance between center |
429mm |
| Bar capacity |
42mm |
51mm(op.) |
| Chuck size |
6"165mm |
| Axis travel |
| Slide travel X |
130mm |
| Slide travel Z |
320mm |
| Spindle |
| Spindle speed |
6,000min-1 |
5,000min-1 |
| Spindle motor |
11/7.5kW 75N.m 7.5/5.5kW 154.3N.m |
| Turret |
| Number of turrets |
1 |
| Type of turret head/Number of index positions |
Dodecagonal/12 |
| Driven tools（op.） |
| Spindle speed |
4,000min-1 |
| Driven motor power |
2.2/1.5kW |
| Rotary system/Number of driven-tool station |
Simultaneous rotation/6 |
| Tailstock(op.） |
| Quill diameter/Quill stroke |
50mm/80mm |
| Quill taper |
MT-3（Rotating center） |
| General |
| Floor space （L×W×H） |
1,795mm×1,405mm
×1,625mm |
| Machine weight |
2,700kg |
