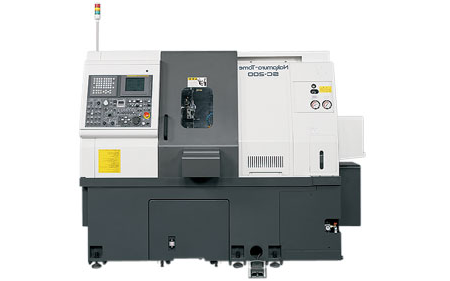

SC-200/200L

BACK

Realization of both powerful cuts and better cost performance.8 inch machine

  • Massive box-way slides on all axes
  • 11/7.5kW spindle motor
  • Spindle speed 4500min-1,Driven-tool speed 6000min-1
  • Faster rapid traverse 24m/min for the X-axis,and 36m/min for the Z-axis
  • Bar capacity 65mm standard
  • All FANUC, CNC control and servo drives.
  • Dodecagonal 12 station turret
  • High quality painting,as well as stainless covers.

    • Machine Specification

    Capacity

    SC-200

    		 SC-200L
    Max. turning diameter 432mm/410mm（with Y-axis） 410mm
    Max. turning length 330mm 530mm
    Distance between center 509mm
    Bar capacity 65mm
    Chuck size 8"
    Axis travel
    Slide travel X 277mm/261mm（with Sub spindle）
    Slide travel Z 365mm 580mm
    Slide travel Y（op.） ±41mm
    Spindle
    Spindle speed 4,500min-1
    Spindle motor 11/7.5kW
    Turret
    Number of turrets 1
    Type of turret head/Number of index positions Dodecagonal/12
    Driven tools（op.）
    Spindle speed 6,000min-1
    Driven motor power 5.5/3.7kW
    Rotary system/Number of driven-tool stations Individual rotation/12
    Tailstock(op.）
    Quill diameter/Quill stroke 80mm/80mm
    Quill taper MT-3（built-in center）
    Sub spindle（op.）
    Chuck size/Bar capacity 6"165mm/34mm 6"165mm/42mm
    Spindle speed 5,000min-1 6,000min-1
    Spindle motor

    5.5/3.7kW

    		 7.5/5.5kW
    11/7.5kW

    Distance between spindle nose

    max/min

    		 615mm/220mm 800mm/220mm
    General
    Floor space （L×W×H） 2,330mm×1,855mm
    ×1,800mm    		 2,771mm×1,884mm
    ×1,965mm
    Machine weight 3,780kg 5,000kg
