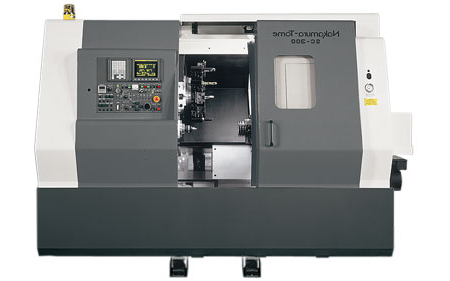

SC-300/300L

BACK

Big bore and powerful cuts.10-inch chuck.

  • Massive 45 Degree slant bed for maximum rigidity
  • 22/18.5kW Wide-Range motor for powerful cuts
  • Quicker 'Non-lift' turret indexing to cut idle time
  • Box type slides and rigid turret for high accuracy
  • Bar capacity 71mm standard
  • All FANUC, CNC control and servo drives
  • Dodecagonal 12 station turret
  • High quality painting,as well as stainless covers

    • Machine Specification

    Capacity SC-300 SC-300L
    Max. turning diameter 350mm 350mm
    Max. turning length 600mm 1,100mm
    Distance between center 713.5mm 1213.5mm
    Bar capacity(mm) 71 80(op.) 89(op.) 71mm
    Chuck size 10"254mm
    Axis travel SC-300 SC-300L
    Slide travel X 222.5mm 222.5mm
    Slide travel Z 635mm 1,135mm
    Slide travel Y（op.） ±45mm
    Spindle SC-300 SC-300L

    Spindle speed(min-1　)

    3,500

    		 2,500 3,500
    spindle motor Standard 22/18.5kW
      Option 30/22kW
    Turret SC-300 SC-300L
    Number of turrets 1
    Type of turret head Dodecagonal
    Number of index positions 12
    Driven tools（op.） SC-300 SC-300L
    Spindle speed 3,600min-1
    Driven motor power 5.5/3.7kW
    Rotary system Individual rotation
    Number of driven-tool stations 12
    Tailstock(op.） SC-300 SC-300L
    Quill diameter/Quill stroke 90mm/100mm
    Quill taper

    MT-5

    （Rotating center）

    MT-4

    （built-in center）
    Sub spindle（op.） SC-300 SC-300L
    Chuck size/Bar capacity 8"215mm/51mm
    Spindle speed 3,500min-1
    Spindle motor 11/7.5kW
    Distance between spindle nose max/min max.810mm/min.310mm
    General SC-300 SC-300L
    Floor space （L×W×H） 3,202mm×1,735mm
    ×1,950mm    		 3,702mm×1,735mm
    ×1,950mm
    Machine weight 4,600kg 5,200kg
