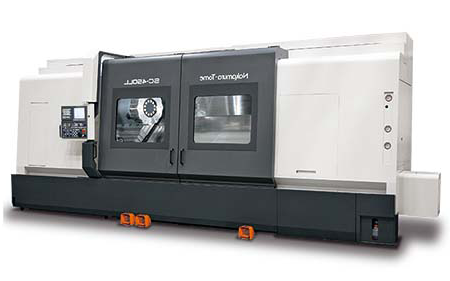

SC-450LL

BACK

1520mm Max.Turning length 810mm Max.Swing Dia.

  • Max. turning length:2520mm Max. swing diameter:810mm
  • Milling function:5.5/3.7ｋW、3600min-1, Y-axis: ±75mm
  • Massive box-way slides on all axes
  • 30/22kW　2500/2028N･m（Bar capacity: 165.5mm）with spindle motor
  • Dodecagonal 12 station turret
  • Easier setup with the display for NC tail stock&NT nurse system
  • Operation friendly: mobile operation monitor
  • User friendly: Bigger color monitor & LED light
  • Part program stroage length:1280m,Number of tool offset:400 (standard)

    • Machine Specification

    Capacity
    Max. turning diameter 480mm
    Max. turning length 2520mm
    Distance between center

    2,752mm
    Bar capacity 81mm 165.5mm
    Chuck size 12"305mm 18" 450mm
    Axis travel
    Slide travel X/Z 322.5mm/2610mm
    Slide travel Y(op.) ±75mm
    Spindle
    Spindle speed 2,500min-1

    1,200min-1
    spindle motor

    Output

    		 30/22kW 30/30kW
    Torque 856/627N・m 2500/2028N・m
    Turret
    Number of turrets 1
    Type of turret head Dodecagonal
    Number of index positions 12
    Driven tools（op.）
    Spindle speed 3,600min-1
    Driven motor power 5.5/3.7kW
    Rotary system Individual rotation
    Number of driven-tool stations 12
    Collet size AR32/Φ1~20mm
    Tailstock
    Specification 11kN

    20kN(op.)
    Drive system NC control servo drive
    Stroke 2,025mm
    Rapid feed 15m/min-1 8m/min-1
    Tailstock taper shank Rotating center MT-4 MT-5
    Thrust adjustment range 2.5~11kN 2.5~20ｋＮ
    General
    Machine height 2,213mm
    Floor space （L×W×） 6,530mmx2,165mm
    Machine weight 15,000kg
