Massive 45 Degree slant bed for maximum rigidity
30/22kW，856/627N・m Wide-Range motor for powerful cuts
Quicker 'Non-lift' turret indexing to cut idle time
Box type slides and rigid turret for high accuracy
Bar capacity 81mm standard
Dodecagonal 12 station turret
Dynamic cuts demonstrate high rigidity.15-inch super chucker

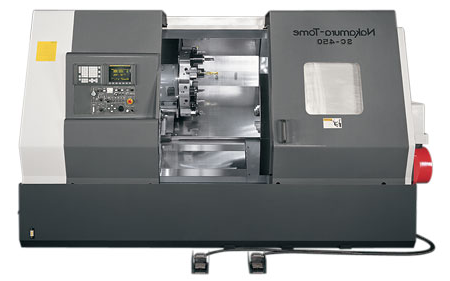

SC-450
Massive 45 Degree slant bed for maximum rigidity
30/22kW Wide-Range motor for powerful cuts
Quicker 'Non-lift' turret indexing to cut idle time
Box type slides and rigid turret for high accuracy
Bar capacity 80mm standard
All FANUC, CNC control and servo drivesDodecagonal 12 station turret
SC-450L
1520mm Max. Turning length
φ810mm Max. Swing Ｄｉａ．
Φ520mm Max. Workpiece Swing Diameter
NC servo driven Tailstock
Machine Specification
| Capacity |
| |
SC-450 |
SC-450L |
| Max. turning diameter |
A type |
465mm |
480mm |
| B type |
480mm |
| Max. turning length |
A type |
785mm |
1520mm |
| B type |
715mm |
| Distance between center |
1,050mm |
1,752mm |
| Bar capacity |
80mm |
81mm |
| Chuck size |
A type |
12"/305mm |
12"/305mm |
| B type |
15"/381mm |
| Axis travel |
| Slide travel X/Z |
315mm/825mm |
322.5mm/1610mm |
| Slide travel Y(op.) |
±70mm |
±75mm |
| Spindle |
| Spindle speed |
2,500min-1 |
| spindle motor |
Output |
30/22kW |
| Torque |
856/627N・m |
| Turret |
| |
SC-450 |
SC-450L |
| Number of turrets |
1 |
| Type of turret head |
Dodecagonal |
| Number of index positions |
12 |
| Driven tools（op.） |
| Spindle speed |
3,600min-1 |
| Driven motor power |
5.5/3.7kW |
| Rotary system |
Individual rotation |
| Number of driven-tool stations |
12 |
| Tailstock(op.） |
| Drive system |
Hydraulic drive system |
NC servo drive system |
| Stroke |
760mm |
1490mm |
| Rapid speed |
－ |
15m/min-1 |
| Taper shank |
Rotating center |
－ |
MT-5 |
| Built in center(op.) |
MT-4 |
MT-4 |
| General |
| Machine height |
2,100mm |
2,184.9mm |
| Floor space （L×W） |
3,786mm×1,975mm |
3,786mm×1,975mm |
| Machine weight |
7,500kg |
9,000kg |
