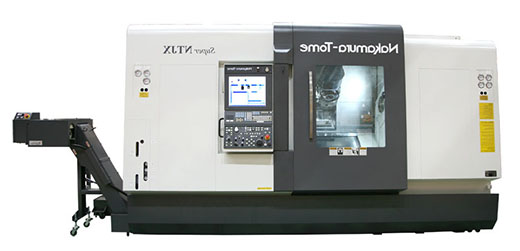

World Premiere ! Y axis on lower Turret
40tools Number of stock tool (op.80,120tools)
140mm / 70mm Y-axis on upper and lower slides!
6000min-1 Milling speed (Tool spindle)
7.5/3.7kW Built-in tool spindle motor
Up to 22kW cutting power available for turning shaft-work with synchronized spindles.(Left spindle motor 15/11kW、Right spindle motor 11/7.5kW)
5.5/3.7kW Lower turrets Driven-tool motor
190degree B-axis positioning range (±95degree)
Machine Specification
| Capacity |
| Max. turning diameter/Max. turning length |
245mm/1,090mm |
| Distance between spindle nose |
max.1,290mm/min.210mm |
| Bar capacity |
51mm（op.65mm） |
| Chuck size |
170mm（6"） |
| Axis travel |
| Slide travel X1/X2/Z1/Z2/B2 |
455/222.5/1,090/1,005/1,008mm |
| Slide travel Y1/Y2 |
±70/+20mm,-50mm |
| Left spindle Right spindle |
| Spindle speed |
6,000min-1（op.L:4,500min-1） |
| Left spindle motor |
15/11kW 221.5/162.5N.m |
| Right spindle motor |
11/7.5kW 208/115N.m |
| Tool spindle |
| Tool spindle speed |
8,000min-1（op.12,000min-1） |
| Drive motor |
7.5/3.7kW max.54N.m |
| Tool shank type |
KM63, CAPTO C6（op.HSK-A63） |
| Number of tool stock |
40（op.80,120） |
| Max. tool diameter/without adjacent tool |
70mm/90mm |
| Max.tool length/Max.tool weight |
280mm/8kg |
| Orientation function |
90 degree positioning |
| Indexing range |
230°（±115°） |
| Lower turret |
| Spindle speed |
6,000min-1 |
| Type of turret head/Number of index positions |
Dodecagonal/24 |
| Driven motor power and torque |
5.5/3.7kW max.24N.m |
| Rotary system/Number of Driven-tool station |
Individual rotation/12 |
| General |
| Floor space （L×W×H） |
4,718mm×2,922mm
×2,445mm |
| Machine weight |
14,000kg |
