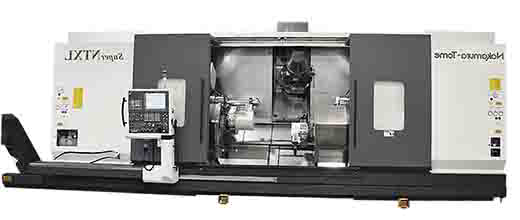

Super NTXL

BACK

  • Up to 44kW cutting power available for turning shaft-work with synchronized spindles.(Left spindle motor 22/18.5kW、Right spindle motor 22/18.5kW)
  • 5.5/3.7kW Lower turrets Driven-tool motor
  • 230degree B-axis positioning range (±115degree)

    • Spindle Machining as an application Multi - Tasking Machining of Long Parts

  • Double steady rest becomes a reality of phase sychronizing transfer of long parts
  • Distance between centers 2.3m
  • 40tools Number of stock tool (op.80,120tools)
  • 160mm Y-axis stroke (Tool spindle)
  • 8000min-1 Milling speed (Tool spindle)
  • 18.5/11kW Built-in tool spindle motor

    • Machine Specification

    Capacity

    Max.turning diameter / length 320mm/2,000mm
    Distance between centers max.2,300mm/min.400mm
    Bar capacity 65mm（op.71mm,90mm）
    Chuck size 305mm（12"）
    Axis travel

    Slide travel(X1/X2/X3)

    		 630mm/255mm/255mm
    Slide travel(Z1/Z2/Z3) 2､050mm/650mm/1500mm
    Slide travel Y ±80mm
    Left and right spindles
    Spindle speed 4,500min-1 3､500min-1 ２，５００ｍｉｎ-1
    Hole through draw tube ６６mm 72mm 91mm
    L-spindle

    22/18.5kW　30/22kW(op.Φ90)
    R-spindle 22/18.5kW
    Tool spindle
    Tool spindle speed 8,000min-1（op.12,000min-1）
    Rotating tool spindle 18.5/11kW　
    Tool shank type KM63, CAPTO C6、HSK-A63
    Number of tool stock 40（op.80,120）

    Max.tool diameter/without adjacent tool

    		90mm/120mm
    Max.tool length/Max.tool weight 300mm/8kg
    Orientation function 90 degree positioning
    Indexing range 230 degree（±115 degree）
    Lower turret
      with steady rest without steady rest
    Type of turret head Docagonal drum turret

    Dodecagonal drum turret

    Number of tool stations

    /Number of Indexing

    17/24

    24/24
    Rotary system － Individual rotation
    Spindle speed 3,600min-1
    Rotating tool spindle (Lower turret) 5.5/3.7kW　
    General
    Floor space (L×W×H） 3,673mm×8,510mm ×3,171mm
    Machine weight 28,000kg
