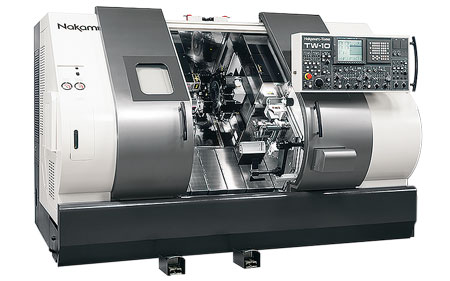

A bar machine, Which improves productivity,through a high output motor,which ensures high speed machining
Opposed two-spindle, 2-turret construction!
48tools Number of tool stations
24tools Number of driven-tool stations
60mm Y-axis on Upper Turrets (±30mm)
7.5/5.5kW+7.5/5.5kW L/R spindle motor
3.7/2.2kW x 2 Driven-tool motor
3600min-1 Driven-tool speed
Machine Specification
| Capacity |
| Max. turning diameter/Max. turning length |
210mm/155mm |
| Distance between spindle nose |
max.870mm/min.250mm |
| Bar capacity |
42mm（op.51mm） |
| Chuck size |
6"165mm |
| Axis travel |
| Slide travel X1/X2 |
180mm/180mm |
| Slide travel Z1/Z2 |
200mm/620mm |
| Slide travel Y1/Y2（op.） |
±30mm/±30mm |
| Left spindle Right spindle |
| Spindle speed |
5,500min-1 5,000min-1 |
| Left spindle motor |
7.5/5.5kW（op.11/9kW） |
| Right spindle motor |
7.5/5.5kW |
| Left turret Right turret |
| Number of turrets |
2 |
| Type of turret head/Number of index positions |
Dodecagonal/24 |
| Driven tools |
| Spindle speed |
3,600min-1 |
| Driven motor power |
3.7/2.2kW |
| Rotary system/Number of driven-tool stations |
Individual rotation/12 |
| General |
| Floor space （L×W×H) |
2,940mm×2,249mm
×1,972mm |
| Machine weight |
6,150kg |
