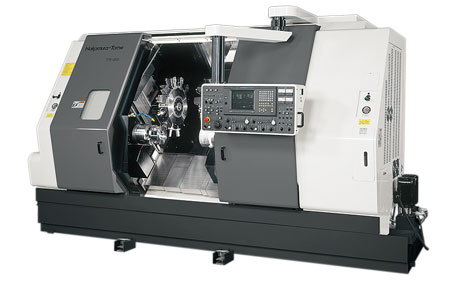

With high speed flexible machine,this the star of the TW-series,dedicated towards factory automation
Opposed two-spindle, 2-turret construction!
48tools Number of tool stations
24tools Number of driven-tool stations
90mm Y-axis on Upper Turrets (±45mm)
15/11kW+15/11kW L/R spindle motor
3.7/2.2kW x 2 Driven-tool motor
3600min-1 Driven-tool speed
Machine Specification
| Capacity |
TW-20 |
16st |
| Max. turning diameter/Max. turning length |
270mm/192mm |
240mm/213mm |
| Distance between spindle nose |
max.1,080mm/min.300mm |
| Bar capacity |
51mm（op.65mm） |
| Chuck size |
8"215mm |
6"165mm |
| Axis travel |
TW-20 |
16st |
| Slide travel X1/X2 |
195mm/195mm |
| Slide travel Z1/Z2 |
265mm/780mm |
| Slide travel Y1/Y2（op.） |
±45mm/±45mm |
| Left spindle Right spindle |
TW-20 |
16st |
| Spindle speed |
5,000min-1 |
4,500min-1 |
| Left spindle motor |
15/11kW（op.18.5/15kW） |
| Right spindle motor |
15/11kW |
| Left turret Right turret |
TW-20 |
16st |
| Number of turrets |
2 |
| Type of turret head/Number of index positions |
Dodecagonal/24 |
16-station/16 |
| Driven tools（op.） |
TW-20 |
16st |
| Spindle speed |
3,600min-1 |
| Driven motor power |
3.7/2.2kW |
| Rotary system/Number of driven-tool stations |
Individual rotation/12 |
Individual rotation/16 |
| General |
TW-20 |
16st |
| Floor space （L×W×H) |
3,444mm×2,235mm
×2,135mm |
| Machine weight |
7,800kg |
