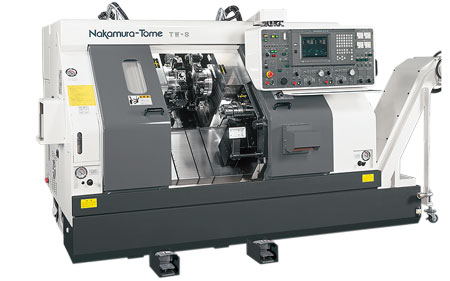

Minimum floor space,low cost,long awaited compact two-spindle mahine
Opposed two-spindle, 2-turret construction!
24tools Number of tool stations
12tools Number of driven-tool stations
7.5kW + 7.5kW L/R spindle motor
2.5kW x 2 Driven-tool motor
4000min-1 Driven-tool speed
Machine Specification
| Capacity |
| Max. turning diameter/Max. turning length |
190mm/115mm |
190mm/100mm |
| Distance between spindle nose |
max.735mm/min.210mm |
max.743mm/min.218mm |
| Bar capacity |
34mm |
op.42mm |
| Chuck size |
6" 165mm |
| Axis travel |
| Slide travel X1/X2 |
150mm/150mm |
| Slide travel Z1/Z2 |
180mm/525mm |
| Left spindle Right spindle |
| Spindle speed |
6,000min-1 |
| Left spindle motor |
7.5kW |
| Right spindle motor |
7.5kW |
| Left turret Right turret |
| Number of turrets |
2 |
| Type of turret head/Number of index positions |
Dodecagonal/12 |
| Driven tools（op.） |
| Spindle speed |
4,000min-1 |
| Driven motor power |
2.5kW |
| Rotary system/Number of driven-tool stations |
Simultaneous rotation /6 |
| General |
| Floor space （L×W×H) |
2,300mm×1,600mm
×1,600mm |
| Machine weight |
4,810kg（TW-8MM） |
