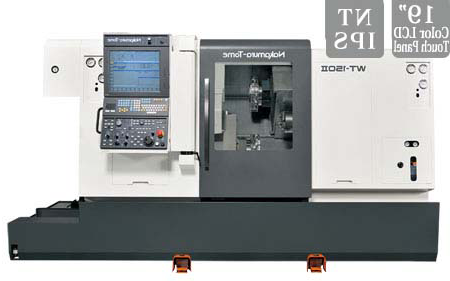

High Speed, high rigidity and compact multi-tasking machine
Up to 26kW cutting power available for turning shaft-work with synchronized spindles.(Left spindle motor 15/11kW、Right spindle motor 11/7.5kW)
Driven-Tool Motor Power 5.5/3.7kW,for heavy cutting with small tools.
With upper / lower turret construction,4-axis machining as well as various other machining combinations possible on either spindle
With upper / lower turrets and opposed two-spindle construction,cycle time balancing and reduction is possible.
With up to 24-tools per turret,48 tools can be permanently available.
Machine Specification
|
φ51mm |
φ65mm（op.） |
| Capacity |
| Max. turning diameter |
190mm |
| Max. turning length |
515mm |
| Distance between spindle nose |
max.800mm/min.200mm |
| Bar capacity |
51mm |
65mm（L） |
| Chuck size |
6"165mm |
| Axis travel |
| Slide travel X1/X2 |
167.5/167.5mm |
152.5/167.5mm |
| Slide travel Z1/Z2/B |
515/515/600mm |
| Slide travel Y upper turret |
±35mm |
| Left spindle Right spindleR |
| Spindle speed |
5,000min-1 |
4,500min-1(L) |
| Left spindle motor |
Output |
15/11kW |
| Torque |
136.4/93.4N･m |
152.8/93.4N･m |
| Right spindle motor |
Output |
11/7.5kW |
| Torque |
89.1/56.7N･m |
－ |
| Upper turret |
| Number of turrets |
1 |
| Spindle speed |
6,000min-1 |
| Type of turret head |
Dodecagonal |
| Number of index positions |
24 |
| Driven motor power and torque |
5.5/3.7kW 24/16N.m |
| Rotary system/Number of driven-tool stations |
Individual rotation/12 |
| Lower turret |
| Number of turrets |
1 |
| Spindle speed |
6,000min-1 |
| Type of turret head |
Dodecagonal |
| Number of index positions |
24 |
| Driven motor power and torque |
5.5/3.7kW 24/16N.m |
| Rotary system/Number of driven-tool stations |
Individual rotation/12 |
| General |
| Floor space （L×W×H） |
3,674mm×2,264mm
×1,885.2 |
| Machine weight |
8,900kg |
