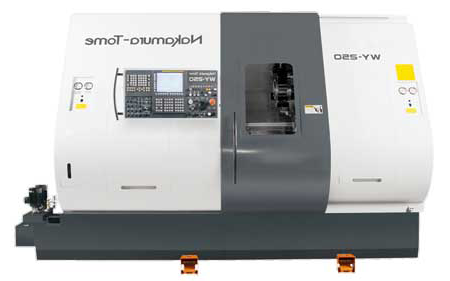

The high output,high torque motor (5.5/3.7kW/24N.m) Large workingarea with Y-axis on upper & lower turrents.
5.5/3.7kw 24N·m,High-power,High-torque Milling Motors on Upper and Lower Turrets
Opposed two-spindle, 2-turret construction!
Y-axis on Upper and Lower Turrets Upper ±50mm/Lower -50mm,+20mm
48tools Number of tool stations
24tools Number of rotating tool stations
Up to 30kW cutting power available for turning shaft-work with synchronized spindles.(Left spindle motor 18.5/11kW、Right spindle motor 15/11kW)
Machine Specification
| Capacity |
| Max. turning diameter/Max. turning length |
225mm/580mm |
| Distance between spindle nose |
max.870mm/min.255mm |
| Bar capacity |
L:65mm R:51mm |
| Chuck size |
L:210mm（8"） R:165mm（6"） |
| Axis travel |
| Slide travel X1/X2 |
160.5mm/160mm |
| Slide travel Z1/Z2/B2 |
580/580/620mm |
| Slide travel Y1/Y2 |
±50mm/-50mm,+20mm |
| Left spindle Right spindle |
| Spindle speed |
4,500min-1/5,000min-1 |
| Left spindle motor |
18.5/11kW 225/185N.m |
| Right spindle motor |
15/11kW 120/120N.m |
| Upper turret |
| Number of turrets |
1 |
| Spindle speed |
6,000min-1 |
| Driven motor power and torque |
5.5/3.7kW 24N.m |
| Type of turret head/Number of index positions |
Dodecagonal/24 |
| Rotary system/Number of driven-tool stations |
Individual rotation/12 |
| Lower turret |
| Number of turrets |
1 |
| Spindle speed |
6,000min-1 |
| Driven motor power and torque |
5.5/3.7kW 24N.m |
| Type of turret head/Number of index positions |
Dodecagonal/24 |
| Rotary system/Number of driven-tool stations |
Individual rotation/12 |
| General |
| Floor space （L×W×H） |
4,436mm×2,674mm
×2,395mm |
| Machine weight |
12,000kg |
