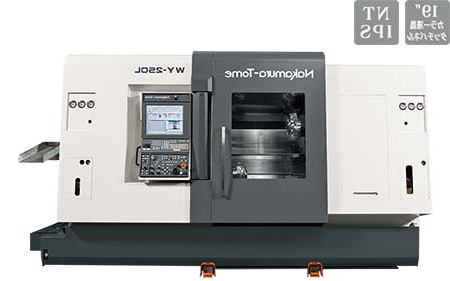

WY-250L

BACK

Increase your working range large working area with Y-axis on upper & lower turrets

  • Distance between spindles 1,200mm
  • Opposed two-spindle, 2-turret construction!
  • Y-axis on Upper and Lower Turrets Upper ±50mm/Lower -50mm,+20mm
  • 48tools Number of tool stations
  • 24tools Number of rotating tool stations
  • Up to 30kW cutting power available for turning shaft-work with synchronized spindles.(Left spindle motor 18.5/11kW、Right spindle motor 15/11kW)

    • Machine Specification

    Capacity
    Max. turning diameter 225mm

    Max. turning length

    		 910mm
    Distance between centers

    max1,200mm/min.255mm
    Bar capacity

    L：65ｍｍ/R: 51mm
    Chuck size L：:210mm(8")/R：165mm（8"）
    Axis travel
    Slide travel X1/X2 160.5mm/160mm
    Slide travel Z1/Z2/B2 910mm/910mm/945mm
    Slide travel Y1/Y2 ±50/-50ｍｍ、+20ｍｍ
    Left and right spindles
    Spindle speed 4,500min-1/5,000min-1
    Left spindle motor 18.5/11kW max.225N・m
    Right spindle motor 15/11kW max. 120N・m
    Upper turrets
    Number of turrets 1
    Spindle speed 6,000min-1
    Driven motor power and torque 5.5/3.7kW　ｍａｘ．24N.m
    Type of turret head/Number of index positions Dodecagonal/24
    Rotary system/Number of driven-tool stations Individual rotation/12
    Lower turrets
    Number of turrets 1
    Spindle speed 6,000min-1
    Driven motor power and torque 5.5/3.7kW　ｍａｘ．24N.m
    Type of turret head/Number of index positions Dodecagonal/24
    Rotary system/Number of driven-tool stations Individual rotation/12
    General
    Floor space （L×W×H） 4,900mm×2,580mm ×2,395mm
    Machine weight 13,000kg
