- Table Size:
- Travel (X, Y, Z):
- Travel (A, C):
- Spindle Taper:
- Spindle Speed:
- Tool Storage Capacity:
- Tool Change Time (T-T/C-C):
- Rapid Feed (X, Y, Z):
- Rapid Feed (A, C):
- Power Requirement:
- 15.7” (400mm) round dia. (Opt. 21.7" (550mm) round dia.)
- 24” x 24” x 19.7” (610 x 610 x 500mm)
- -120~+30 deg. /0~360 deg.
- NST No. 40
- 40~20,000rpm
- 50 Pcs.
- 5.9 Sec. /9.4 Sec.
- 1969ipm (50m/min) X & Y, 985ipm (25m/min) Z
- 18,000 deg. /min (50rpm)
- 45KVA

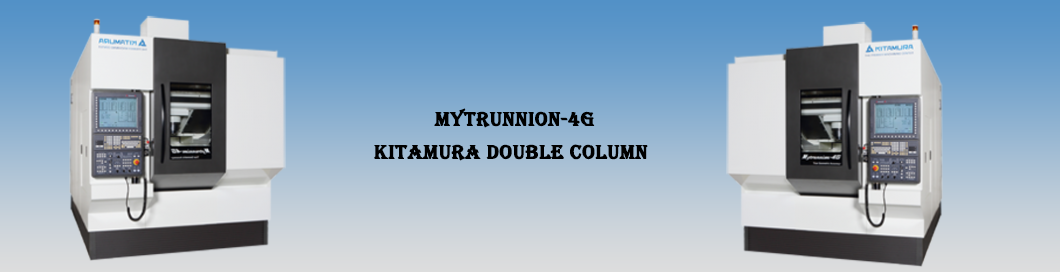

Ideal for ultra-high precision simultaneous 5-axis machining
Positioning Accuracy: ±0.000039” Full Stroke, Repeatability: ±0.00002”
Sliding overhead door allows for easy workpiece loading/unloading
Powerful #40, 15,000rpm, 15HP Direct Drive, Dual Contact Spindle. Optional HSK-A63 Spindle Configuration available
Linear Scale Feedback on all Axes
Expansive 21.7"Dia. x 15.7"H (550 x 400mm) work envelope beats the competition
Highest grade meehanite cast iron construction for superior vibration absorption and improved surface finishes
